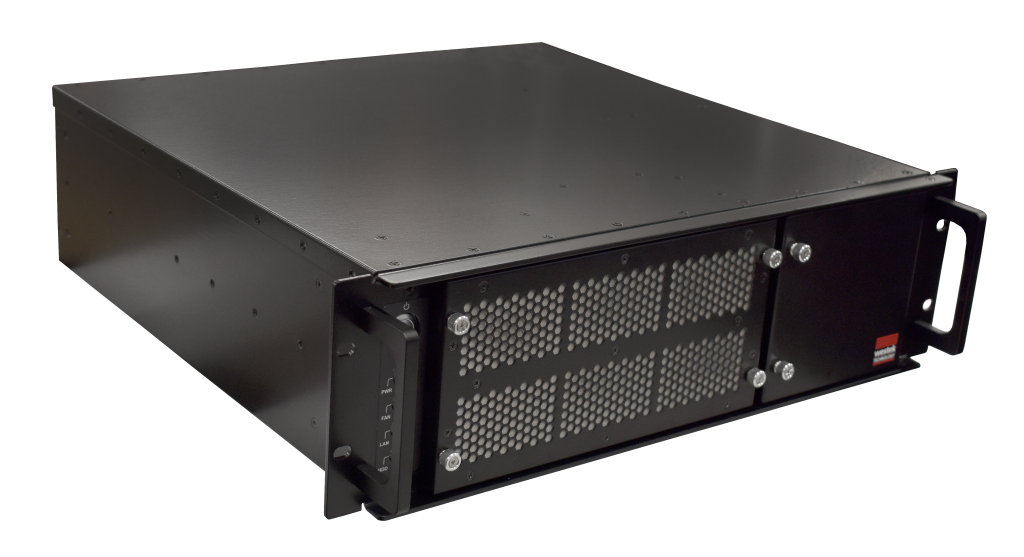

Westek’s P3494R provides rugged server or workstation capability with Intel® Core™ or Xeon® processors in a custom 3U 19” rack mount chassis. The P3494R’s low-depth chassis makes it an ideal solution when a rugged solution is required without the need for full MIL rugged connectors. Its rear I/O offers a variety of interfaces including multiple USB, Ethernet, and display ports.
P3494R
- Low-depth 420mm chassis
- Up to 46TB removable storage
- Up to 512GB DDR4 memory
- AC or DC power input with EMI filtering
Hardware | |
CPU | Intel® Core™ Series Processors up to 24P/E Cores |
RAM | Up to 512GB DDR5 5600MT/s Registered RAM (CPU Dependant) |
Storage | Up to 6x M.2 or 2.5″ SSD bays SATA/SAS/NVMe options available |
Addon Cards | Up to 5 Addon Cards (CPU Dependant) |
OS Support | Microsoft Windows, VMWare, various Linux distributions |
Addon Card Options | |
Available Supported Addon Cards | Dedicated RAID/HBA/Fibre Channel Controllers |
I/O Interface Options | |
Power | AC Power Input (110-240VAC 47-63Hz) |
Display | VGA/DVI/HDMI/DP |
Ethernet | RJ45/LC |
OOB | RJ45 OOB Management (IPMI + RAID) |
USB | USB Type A or C |
Serial | RS232/422/485 Serial |
Audio | Line in/out |
(Some options may be presented via multiway or proprietary connectors with options for break out cables available) | |
(I/O options will be dependant upon the above hardware and addon card configuration) | |
Mechanical Design | |
Dimensions | 431 (W) x 132 (H) x 420 (D) |
Weight | Approx. 17kg |
Connectors | Rear Direct Interface |
Cooling | Air Cooled (front to back) |
IP Rating Options | IP50 |
Environmental Design | |
High Temperature | +55°C |
Low Temperature | -20°C |
Vibration (Operational) | 2G 10Hz to 500Hz |
Shock | 20G 11msec |
Altitude | Up to 5,000m |
High Temperature | +71°C |
Low Temperature | -40°C |
Vibration | 4G 10Hz to 500Hz |
Shock | 40G 11msec |
Altitude | Up to 10,000m |
Humidity | 10-95% non-condensing |
