C3296M

  • Powerful conduction-cooled server
  • Ultra rugged milled chassis
  • IP65 sealed

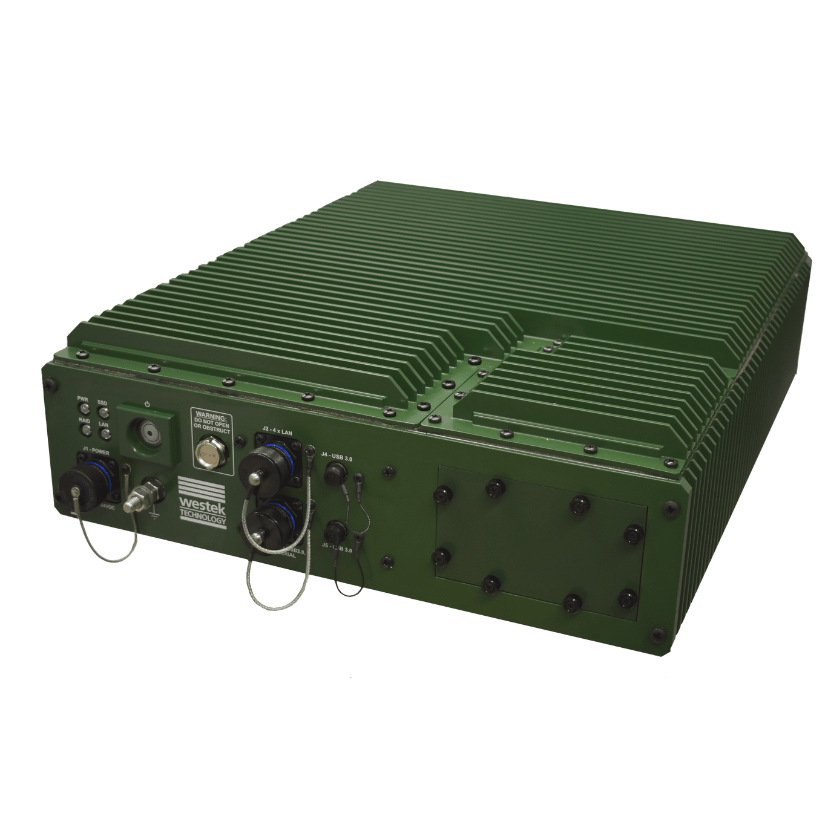

Westek’s C3296M provides powerful server performance in an ultra rugged sealed chassis. Featuring market leading conduction cooled technology, the C3296M boasts an Intel® Xeon® processor and a variety of front I/O interfaces including multiple USB, Ethernet and display ports.

Hardware

CPU

Intel® Core™ Series Processors up to 24P/E Cores
Intel® Xeon® Processors up to 10 Cores

RAM

Up to 128GB DDR5 5600MT/s Registered RAM (CPU Dependant)

Storage

Up to 6x M.2 or 2.5″ SSD bays SATA/SAS/NVMe options available

Addon Cards

Up to 1 Addon Card (CPU Dependant)

OS Support

Microsoft Windows, VMWare, various Linux distributions

Addon Card Options

Available Supported Addon Cards

Dedicated RAID/HBA/Fibre Channel Controllers
Fibre Ethernet up to 40Gb/s
Copper Ethernet up to 10Gb/s
Discrete GPUs
Serial Controllers
GPIO Interfaces
Sound Cards
Timing Cards
(Support for additonal addon cards may be available upon request)
(Some required controllers may already be intergrated into the server’s mainboard)

I/O Interface Options

Power

DC Power Input (18-36VDC)

Display

VGA/DVI/HDMI/DP

Ethernet

RJ45

OOB

RJ45 OOB Management (IPMI + RAID)

USB

USB Type A or C

Serial

RS232/422/485 Serial

Audio

Line in/out

(Some options may be presented via multiway or proprietary connectors with options for break out cables available)

(I/O options will be dependant upon the above hardware and addon card configuration)

Mechanical Design

Dimensions

424 (W) x 134 (H) x 500 (D)

Weight

Approx. 35kg

Connectors

Front MIL Interface

Cooling

Conduction Cooled

IP Rating Options

IP65

Environmental Design

High Temperature
(Operational)

+55°C

Low Temperature
(Operational)

-20°C

Vibration (Operational)

2G 10Hz to 2000Hz

Shock
(Operational)

20G 11msec

Altitude
(Operational)

Up to 12,000m


High Temperature
(Non-Operational)

+71°C

Low Temperature
(Non-Operational)

-40°C

Vibration
(Non-Operational)

4G 10Hz to 2000Hz

Shock
(Non-Operational)

40G 11msec

Altitude
(Non-Operational)

Up to 12,000m

Humidity

10-95% non-condensing
